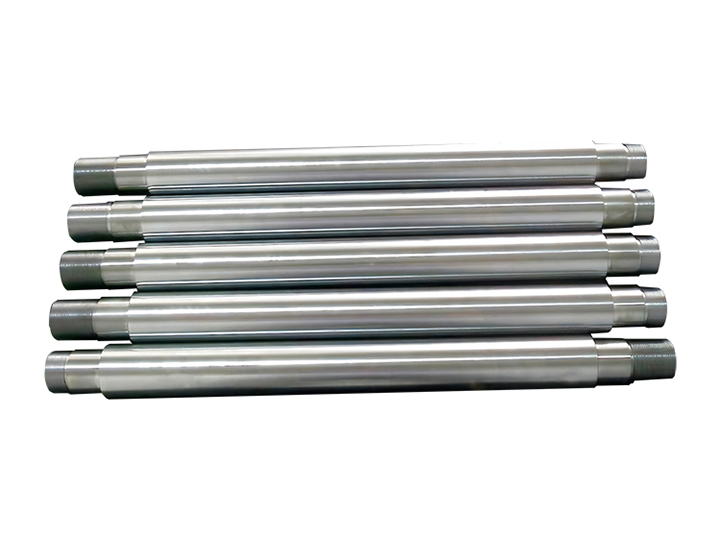

In the field of high-end mechanical manufacturing, precision shafts, as core transmission components, directly determine the operational accuracy and stability of equipment. Their design, manufacturing, and maintenance must adhere to stringent technical standards to meet core requirements such as high rotational speed, low noise, and long service life.



I. Technical Characteristics and Performance Indicators

The core technology of precision shafts is reflected in three aspects: micro-level precision control, high-strength material application, and complex process integration. Diameter precision can be controlled within ±0.5 microns, and surface roughness reaches Ra 0.02μm, ensuring a reduction in friction loss by over 40%. Manufacturing materials must possess high hardness of HV500-700 and magnetic permeability below 1.01μ, while also providing corrosion resistance to meet the demands of extreme working conditions such as aerospace.



II. Full-Process Manufacturing Technology

1. Material Selection: Prefer non-magnetic stainless steel and alloy steel (e.g., 40Cr), with vacuum melting to reduce impurities.

2. Precision Forming: Utilize ultra-precision grinders for processing, achieving a tolerance of ±0.0005mm for shaft diameters ranging from φ0.4mm to 10mm.

3. Strengthening Treatment: Multi-stage heat treatment processes increase hardness to HV700, enhancing wear resistance by 3 times.

4. Surface Treatment: Nanoscale polishing technology combined with anti-rust coatings extends service life to 100,000 hours.

5. Intelligent Inspection: Coordinate measuring machines (CMM) real-time monitor key indicators such as roundness (≤0.0001mm) and coaxiality.



III. Industry Application Scenarios

1. Industrial Equipment: CNC machine tool spindles achieve 0.1μm-level feed accuracy, improving processing efficiency by 30%.

2. Automotive Manufacturing: Engine crankshafts adopt nitriding processes, reducing fuel consumption by 12%.

3. Aerospace: Satellite attitude control shafts can withstand extreme temperature differences from -180℃ to 300℃.

4. Medical Devices: Transmission systems in nuclear magnetic resonance (NMR) instruments achieve zero magnetic interference.



IV. Quality Control Standards

A full-process quality traceability system is implemented from raw materials to finished products, with key links including:

- Spectral analysis of raw material composition

- Online vibration testing and screening

- Surface defect inspection using 30x microscopes

- Dynamic balance testing (residual unbalance ≤0.1g·mm/kg)



V. Maintenance and Optimization Solutions

1. Daily Maintenance: Replenish special grease every 500 hours, maintaining viscosity at the ISO VG32 standard.

2. Installation Specifications: Adopt liquid nitrogen shrink fitting process to control interference fit tolerances.

3. Performance Monitoring: Install vibration sensors to real-time monitor amplitude (≤2.5μm).

4. Remanufacturing Technology: Repair worn surfaces via laser cladding, with repair costs only 30% of new components.

With the development of intelligent manufacturing, the precision shaft industry is showing two major trends: processing accuracy is breaking through to the nanoscale, with ultra-precision grinders achieving 1nm surface roughness; manufacturing cycles have been shortened by 50% through digital twin technology for real-time optimization of process parameters. It is projected that by 2025, the domestic market size will exceed 40 billion yuan, with the localization rate of high-end products increasing to over 65%. Manufacturers need to focus on breakthroughs in core technologies such as heat treatment deformation control and miniaturized processing to meet the incremental demand for ultra-precision transmission components in emerging industries such as new energy and semiconductors.
