Abstract  Precision shafts serve as the core transmission and positioning components in high-end mechanical systems, characterized by ultra-high dimensional accuracy, excellent surface quality, and stable dynamic performance. This paper systematically dissects the core technologies of precision shafts, including material selection, structural design optimization, precision manufacturing processes, and surface modification technologies. It also elaborates on typical application scenarios across industrial robots, aerospace, medical equipment, and precision instruments, and proposes standardized selection and maintenance guidelines. The content provides a technical reference for engineers engaged in the design, production, and application of high-precision mechanical components, facilitating the optimal matching of precision shaft performance with the operational requirements of advanced equipment.



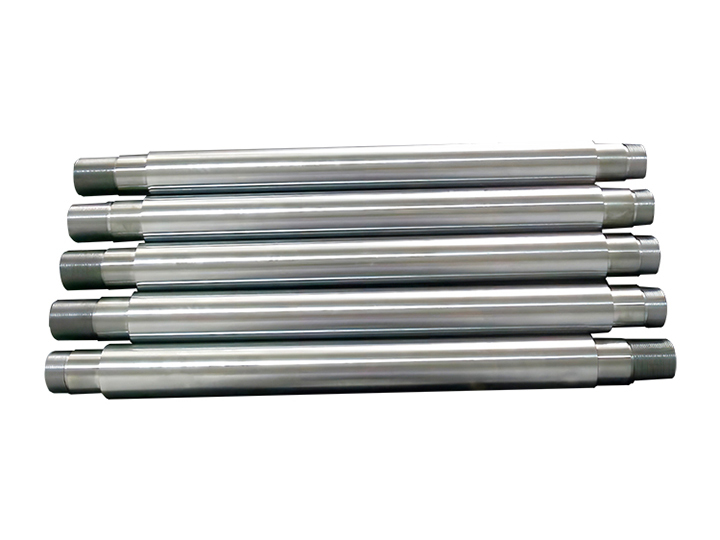

Precision shafts differ fundamentally from conventional transmission shafts in that they must meet stringent requirements for dimensional tolerance, geometric accuracy, surface roughness, and dynamic balance. As the ""backbone"" of precision machinery, they are responsible for transmitting torque, supporting rotating parts, and ensuring precise positioning and motion synchronization of equipment. With the advancement of intelligent manufacturing, the demand for precision shafts is growing rapidly in high-end industries such as industrial automation, aerospace, and medical devices. The performance of precision shafts directly determines the operational precision, stability, and service life of the entire equipment system. This paper focuses on the core technologies and application scenarios of precision shafts, aiming to provide a comprehensive technical framework for the development and application of such components.



The manufacturing of high-performance precision shafts relies on the integration of material science, structural design, precision machining, and surface engineering technologies. The key technical points are as follows:



The material of precision shafts directly affects their mechanical properties, wear resistance, and corrosion resistance. The selection of materials must be tailored to the specific working conditions, with the following common high-performance materials:

1. High-carbon chromium bearing steel (e.g., SUJ2, 100Cr6)

    This material has high hardness (HRC 60–64 after quenching and tempering), excellent wear resistance, and fatigue strength. It is the most widely used material for precision shafts in bearing systems, linear actuators, and servo motors. The uniform distribution of carbides in the microstructure ensures stable dimensional accuracy during long-term operation.

2. Stainless steel (e.g., 304, 316L, 440C)

    Austenitic stainless steels (304, 316L) are preferred for precision shafts in corrosive environments due to their excellent corrosion resistance and hygienic performance, suitable for medical equipment and food processing machinery. Martensitic stainless steel (440C) offers high hardness and wear resistance after heat treatment, making it ideal for precision shafts in high-load, corrosion-prone scenarios.

3. High-strength alloy steel (e.g., 40CrNiMoA, 17-4PH)

    These alloys exhibit high tensile strength, toughness, and fatigue resistance, suitable for precision shafts in aerospace equipment and heavy-duty precision machinery that require both high precision and load-bearing capacity. Precipitation-hardening stainless steel (17-4PH) can achieve high strength through low-temperature heat treatment without compromising dimensional stability.

4. Special materials (e.g., titanium alloy, ceramic)

    Titanium alloy precision shafts are used in aerospace and medical fields for their lightweight, high specific strength, and biocompatibility. Ceramic precision shafts (e.g., silicon nitride) have ultra-high hardness, wear resistance, and thermal stability, suitable for high-speed, high-temperature precision rotating systems.



The structural design of precision shafts must balance precision, rigidity, and dynamic performance, with the following key design points:

1. Dimensional and geometric tolerance control

    - Dimensional tolerance: The diameter tolerance of precision shafts is typically controlled within IT5–IT3 grade, with ultra-precision shafts reaching IT2 grade.

    - Geometric tolerance: Roundness and cylindricity errors are limited to ≤0.5 μm; straightness error is controlled within ≤0.1 μm per 100 mm length to ensure stable cooperation with bearings and other components.

2. Rigidity optimization design

    Adopt finite element analysis (FEA) to optimize the shaft diameter distribution and support structure, avoiding excessive deflection under load. For long-span precision shafts, design appropriate stepped structures or add reinforcing ribs to improve bending rigidity while minimizing weight.

3. Dynamic balance design

    For high-speed rotating precision shafts (rotational speed >10,000 rpm), dynamic balance design is critical. Remove excess mass through balancing grooves or holes to reduce vibration and noise, meeting G1–G0.4 grade dynamic balance standards.

4. Interface design optimization

    The matching interfaces (e.g., keyways, splines, threaded connections) of precision shafts should be designed with high precision to ensure accurate torque transmission and positioning. Adopt interference fit or transition fit for key functional interfaces to avoid loosening during operation.



The manufacturing process of precision shafts is a key link to ensure their performance, and the core process flow is as follows:

1. Precision forging and blank preparation

    Use precision forging technology to form the shaft blank, refining the grain structure, eliminating internal defects (e.g., porosity, segregation), and improving the mechanical properties of the material. The blank dimensional tolerance is controlled within ±0.5 mm to reduce subsequent machining allowance.

2. CNC precision turning

    Use high-precision CNC lathes with linear guide rails and high-rigidity spindles for rough and semi-finish turning, forming the basic shape of the shaft. The machining accuracy is controlled within IT7–IT6 grade, with surface roughness Ra 3.2–1.6 μm.

3. Precision grinding

    Grinding is the core process to achieve high precision and surface quality of precision shafts, including:

    - Cylindrical grinding: Use high-precision cylindrical grinders with hydrostatic spindles to process the outer circle of the shaft, achieving diameter tolerance IT5–IT3 grade and surface roughness Ra 0.4–0.1 μm.

    - Centerless grinding: Suitable for mass production of small-diameter precision shafts, with high processing efficiency and good consistency of dimensional accuracy.

    - Internal grinding: For precision shafts with inner hole structures, use high-precision internal grinders to ensure the coaxiality of inner and outer circles ≤0.002 mm.

4. Ultra-precision machining (for ultra-high precision requirements)

    For precision shafts requiring ultra-high surface quality and dimensional accuracy (e.g., optical equipment, precision measuring instruments), adopt ultra-precision machining technologies such as precision grinding, lapping, and polishing, reducing surface roughness to Ra 0.025–0.01 μm, and achieving nanoscale dimensional accuracy.

5. Heat treatment and deformation control

    - For bearing steel and alloy steel precision shafts, adopt quenching and tempering, carburizing and quenching, or nitriding heat treatment to improve hardness and wear resistance.

    - Use stress relief annealing before and after machining to eliminate internal stress and prevent deformation during subsequent processing or use. Adopt cryogenic treatment for high-precision shafts to further stabilize the microstructure and reduce dimensional changes.



Surface modification is an important means to enhance the wear resistance, corrosion resistance, and lubrication performance of precision shafts:

1. Hard coating technologies

    - Diamond-like carbon (DLC) coating: Deposit a thin DLC film (thickness 2–5 μm) on the shaft surface, which has high hardness (HV 1500–2500), low friction coefficient (0.05–0.1), and excellent wear resistance, suitable for precision shafts in high-speed, low-lubrication environments.

    - Hard chrome plating: Form a chrome layer (thickness 5–20 μm) on the shaft surface, with hardness HRC 60–65, improving wear and corrosion resistance, suitable for hydraulic cylinder piston rods and other precision transmission components.

    - Ceramic coating: Use thermal spray technology to deposit ceramic coatings (e.g., Al₂O₃-TiO₂) on the shaft surface, with ultra-high temperature resistance and corrosion resistance, suitable for precision shafts in high-temperature, corrosive environments.

2. Thermal diffusion treatment

    - Nitriding treatment: Heat the precision shaft to 500–570°C in a nitrogen-rich atmosphere, forming a hard nitrided layer (thickness 0.1–0.3 mm) on the surface, which improves wear resistance and fatigue strength without significant dimensional changes.

    - Carburizing treatment: For low-carbon steel precision shafts, carburizing treatment increases the surface carbon content, followed by quenching to form a hard surface layer and a tough core, suitable for high-load precision transmission shafts.

3. Surface polishing and passivation

    - Electropolishing: For stainless steel precision shafts, electropolishing removes the surface oxide layer and micro-burrs, forming a smooth, mirror-like surface (Ra ≤0.05 μm), improving corrosion resistance and hygienic performance.

    - Passivation treatment: Immerse the stainless steel precision shaft in nitric acid or citric acid solution to thicken the passive film, enhancing corrosion resistance without affecting dimensional accuracy.



Precision shafts are widely used in various high-end industrial fields due to their excellent performance, with typical application scenarios as follows:



Precision shafts are core components of robot joints, linear modules, and servo motors. The robot joint precision shafts require high rigidity, dynamic balance, and wear resistance to ensure precise positioning and smooth movement of the robotic arm, with positioning accuracy up to ±0.01 mm. In linear motion modules, precision guide shafts cooperate with linear bearings to achieve high-speed, high-precision linear movement, widely used in automated assembly lines, semiconductor manufacturing equipment, and electronic component processing equipment.



In aerospace equipment, precision shafts are used in aircraft engine turbines, satellite attitude control actuators, and missile guidance systems. These precision shafts need to withstand extreme conditions such as high temperature, high pressure, and strong vibration, requiring high strength, fatigue resistance, and dimensional stability. For example, the precision shafts in aircraft engine turbines are made of high-temperature alloy materials, with surface ceramic coatings to improve heat resistance and wear resistance, ensuring long-term reliable operation under high-speed rotation conditions.



Precision shafts are critical components in surgical robots, medical imaging equipment, and drug delivery systems. Surgical robot precision shafts require high biocompatibility, precision, and sterility, typically made of 316L stainless steel or titanium alloy, with electropolished surfaces to meet medical hygiene standards. The precision shafts in medical imaging equipment need to have high dimensional stability to ensure the accuracy of imaging results.



In precision measuring instruments (e.g., coordinate measuring machines, optical microscopes) and metrology equipment, precision shafts are used as guide rails and transmission components, requiring ultra-high dimensional accuracy and surface quality. For example, the precision guide shafts in coordinate measuring machines have straightness errors ≤0.1 μm per 100 mm, ensuring the accuracy of measurement data.



Precision shafts are used in electric vehicle drive motors, battery management systems, and advanced driver assistance systems (ADAS). The precision shafts in drive motors require high dynamic balance and wear resistance to reduce vibration and noise during high-speed rotation, improving the efficiency and service life of the motor. In ADAS, precision shafts in sensor components ensure accurate signal transmission and positioning.



1. Determine precision requirements based on application scenarios

    - For ultra-high precision applications (e.g., precision instruments, surgical robots), select precision shafts with IT3–IT4 grade dimensional tolerance and Ra ≤0.05 μm surface roughness.

    - For general precision applications (e.g., industrial robot joints, servo motors), IT5–IT6 grade dimensional tolerance and Ra 0.1–0.4 μm surface roughness are sufficient.

2. Match materials to working conditions

    - For corrosive environments, select stainless steel (316L) or titanium alloy precision shafts; for high-wear environments, choose bearing steel (SUJ2) with nitriding or DLC coating.

    - For high-temperature environments, select high-temperature alloy or ceramic precision shafts; for lightweight requirements, choose titanium alloy or aluminum alloy precision shafts.

3. Consider dynamic performance requirements

    - For high-speed rotating applications, select precision shafts that meet G1–G0.4 grade dynamic balance standards, with optimized structural design to reduce vibration.

4. Evaluate cost-effectiveness

    - For mass-produced general precision equipment, select cost-effective bearing steel precision shafts; for high-end, special application equipment, choose high-performance materials (e.g., titanium alloy, ceramic) even with higher costs.



1. Precision cleaning

    Clean the precision shaft surface regularly with high-purity alcohol or neutral detergent to remove dust, oil, and other contaminants. Avoid using abrasive cleaners to prevent scratching the surface. For medical equipment precision shafts, use sterilization methods such as autoclaving or ethylene oxide sterilization to meet hygiene requirements.

2. Lubrication management

    Apply high-quality lubricants compatible with the shaft material and working conditions to reduce friction between the shaft and matching components. For high-precision applications, use low-viscosity, high-purity lubricating oils or greases; for food and medical equipment, use food-grade lubricants.

3. Regular precision detection

    Use precision measuring instruments (e.g., micrometers, dial indicators, coordinate measuring machines) to regularly detect the dimensional accuracy, geometric tolerance, and surface roughness of precision shafts. If the accuracy exceeds the allowable range, repair or replace the shaft in a timely manner.

4. Storage and protection

    Store precision shafts in a dry, clean, and ventilated environment, avoiding contact with corrosive substances and carbon steel to prevent galvanic corrosion. Use anti-rust oil and protective film for packaging, and avoid stacking to prevent deformation.
