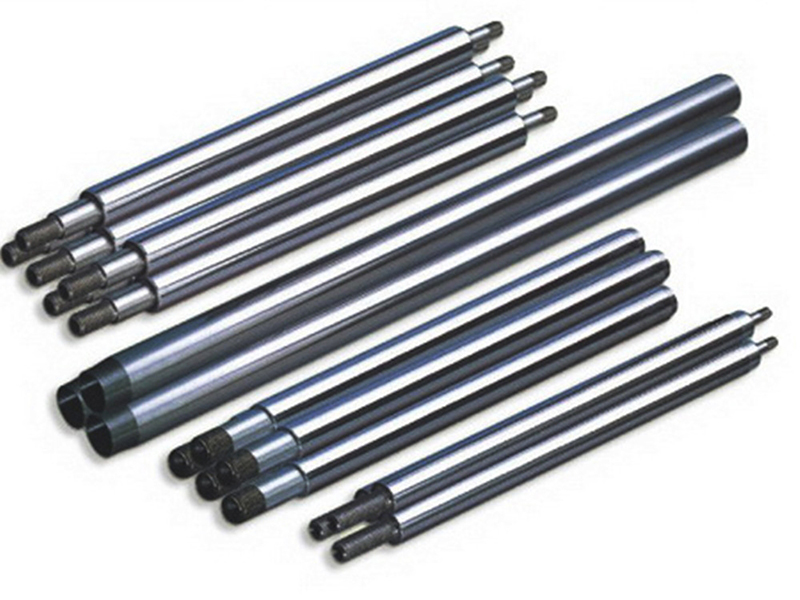

Hard chrome plated (HCP) rods—also referred to as chrome plated piston rods or hydraulic cylinder rods—are critical structural and functional components in industrial machinery, hydraulic/pneumatic systems, and precision engineering applications. Their performance is defined by a synergistic combination of a high-strength metallic core and a wear-resistant hard chrome coating. This article systematically elaborates on the core material composition, chrome plating characteristics, manufacturing processes, technical performance, and industrial applications of HCP rods, providing a technical reference for material selection and system optimization.



The core of a hard chrome plated rod is typically fabricated from high-quality steel materials, selected based on application requirements such as load-bearing capacity, corrosion resistance, and cost-effectiveness. The most commonly used substrates include:



1.1 Carbon Steel Grades

- CK45 (DIN EN 10083-2) / 45 Steel (GB/T 3077): The most widely adopted medium-carbon steel, with a carbon content of 0.42–0.50%. Key mechanical properties (after quenching and tempering): tensile strength 600–800 MPa, yield strength ≥355 MPa, hardness HB 179–229. Offers an optimal balance of strength, toughness, and machinability, making it suitable for medium-load hydraulic cylinders and industrial machinery.

- C45E (EN 10130): A cold-drawn carbon steel variant with tighter dimensional tolerances (ISO 286-2 h7) and improved surface finish, ideal for precision piston rod applications.



1.2 Alloy Steel Grades

- 4140 / 42CrMo4 (DIN EN 10083-3): Chromium-molybdenum alloy steel with enhanced tensile strength (800–1000 MPa) and fatigue resistance. Used in high-pressure hydraulic systems (≥31.5 MPa) and heavy-duty equipment requiring superior durability.

- 17-4 PH (ASTM A564): Precipitation-hardening stainless steel with a tensile strength of 1000–1300 MPa and inherent corrosion resistance. Suitable for harsh environments (e.g., marine, chemical processing) where both strength and corrosion protection are critical.



1.3 Substrate Selection Criteria

- Load-bearing capacity: Medium-carbon steel for general loads, alloy steel for high-pressure/high-cycle applications.

- Environmental conditions: Stainless steel substrates for corrosive environments (saltwater, chemicals).

- Cost-effectiveness: Carbon steel (CK45/C45E) as the economical choice for standard industrial applications.

- Machinability: All selected grades exhibit excellent compatibility with precision grinding, turning, and threading processes to achieve required surface roughness (Ra 0.8–1.6 μm) prior to plating.



The hard chrome coating is an electrolytically deposited chromium layer that enhances the substrate’s surface properties. Its composition and performance are strictly regulated by industry standards (e.g., ASTM B651, DIN 50966).



2.1 Coating Composition & Microstructure

- Chemical Composition: Pure chromium (Cr) with a trace amount of hexavalent chromium compounds (from the plating bath), forming a dense, amorphous-crystalline structure.

- Microstructural Features: Columnar grain growth perpendicular to the substrate surface, with a hardness of HRC 60–70 (Vickers microhardness 800–1000 HV).



2.2 Key Coating Specifications

- Thickness: 0.02–0.15 mm (typical industrial range: 0.05–0.10 mm), with a tolerance of ±0.01 mm. Thicker coatings (0.10–0.15 mm) are used for high-wear applications.

- Surface Finish: After grinding and polishing, the final surface roughness is Ra 0.05–0.2 μm, ensuring compatibility with hydraulic seals (polyurethane, nitrile rubber) and minimizing frictional resistance.

- Adhesion: Complies with ASTM D3359 (tape test) and DIN EN ISO 2819, with no peeling or chipping under bending or impact.

- Corrosion Resistance: Passes 200+ hours of neutral salt spray testing (ASTM B117) when combined with proper pre-treatment.



The production of HCP rods involves rigorous process control to ensure coating adhesion, dimensional accuracy, and performance consistency. Key steps include:



3.1 Substrate Preparation

- Material Inspection: Ultrasonic testing (UT) to detect internal defects (porosity, cracks) in the steel bar; chemical composition analysis to verify compliance with grade standards.

- Precision Machining: Turning, grinding, and centerless grinding to achieve target outer diameter (OD) tolerance (ISO 286-2 h7) and straightness (≤0.1 mm/m).

- Surface Pre-Treatment:

  1. Degreasing: Alkaline cleaning (50–60°C) to remove oils and lubricants.

  2. Pickling: Dilute hydrochloric acid solution to eliminate surface oxides and rust.

  3. Activation: Weak acid etching to create a micro-rough surface (Ra 0.8–1.6 μm) for improved coating adhesion.



3.2 Electrolytic Chrome Plating

- Plating Bath: Chromic acid (CrO₃) solution with a concentration of 220–250 g/L, supplemented with sulfuric acid (1.5–2.5 g/L) as a catalyst.

- Process Parameters: Current density 20–60 A/dm², bath temperature 50–60°C, plating time adjusted based on desired coating thickness (typically 1–3 hours).

- Plating Control: Continuous agitation of the bath to ensure uniform chromium ion distribution; cathode rotation (10–30 rpm) to prevent uneven coating thickness.



3.3 Post-Plating Finishing

- Rinsing & Passivation: Multiple stages of water rinsing to remove residual chromic acid; passivation treatment to enhance corrosion resistance.

- Grinding & Polishing: Precision grinding to achieve final OD tolerance and surface finish (Ra 0.05–0.2 μm); lapping for ultra-precision applications (Ra ≤0.05 μm).

- Quality Inspection: Coating thickness measurement (eddy current testing), hardness testing (Vickers microhardness tester), and visual inspection for defects (pitting, cracks, discoloration).



The combination of a high-strength substrate and hard chrome coating delivers exceptional performance:



4.1 Wear Resistance

The high-hardness chrome layer (HRC 60–70) resists abrasive and adhesive wear caused by seal contact, contaminant particles, and cyclic motion. Service life is 3–5 times longer than unplated rods in typical hydraulic applications.



4.2 Corrosion Resistance

The chrome coating acts as a impermeable barrier, preventing moisture, hydraulic fluids, and corrosive media from reaching the substrate. Suitable for harsh environments such as outdoor machinery, marine systems, and chemical processing equipment.



4.3 Low Friction

The ultra-smooth surface (Ra 0.05–0.2 μm) minimizes frictional coefficient (μ ≤0.15) between the rod and seals, reducing energy consumption and extending seal lifespan by 2–3 times.



4.4 Fatigue Resistance

The substrate’s tempered microstructure and the coating’s compressive residual stress (500–800 MPa) enhance resistance to high-cycle fatigue, enabling reliable operation under repeated hydraulic loading (10⁶–10⁸ cycles).



Hard chrome plated rods are widely used across industries due to their balanced performance:



5.1 Hydraulic & Pneumatic Systems

- Hydraulic Cylinders: Piston rods for industrial cylinders, construction machinery (excavators, cranes), and agricultural equipment. Operates under pressures up to 31.5–45 MPa, withstanding heavy loads and dynamic impacts.

- Pneumatic Cylinders: Used in automation systems, where low friction and corrosion resistance ensure smooth, reliable actuation (cycle frequency up to 100 cycles/min).



5.2 Industrial Machinery

- Metal forming equipment (hydraulic presses, stamping machines): Resists high pressure and wear during metal processing.

- Injection molding machines: Precision motion control for mold opening/closing and ejector systems.

- Machine tools: Linear motion components requiring high precision and durability.



5.3 Automotive & Transportation

- Shock absorbers and suspension components: Absorbs road vibrations, ensuring vehicle stability and ride comfort.

- Commercial vehicle hydraulic systems (trucks, buses): Withstands frequent braking and load changes, reducing maintenance downtime.



5.4 Marine & Offshore

- Shipboard hydraulic systems (steering, winches): Corrosion resistance to saltwater exposure; complies with marine standards (e.g., DNV GL).



Hard chrome plated rods are manufactured in accordance with international standards:

- Material Standards: DIN EN 10083-2 (CK45), ASTM A29 (4140), ASTM A564 (17-4 PH).

- Plating Standards: ASTM B651 (chrome plating for engineering components), DIN 50966 (hard chrome plating).

- Dimensional Tolerances: ISO 286-2 (h7 for outer diameter, H8 for inner diameter in hollow rods).

- Size Range: Outer diameter 8–200 mm, length 100–6000 mm; custom sizes available for specialized applications.
