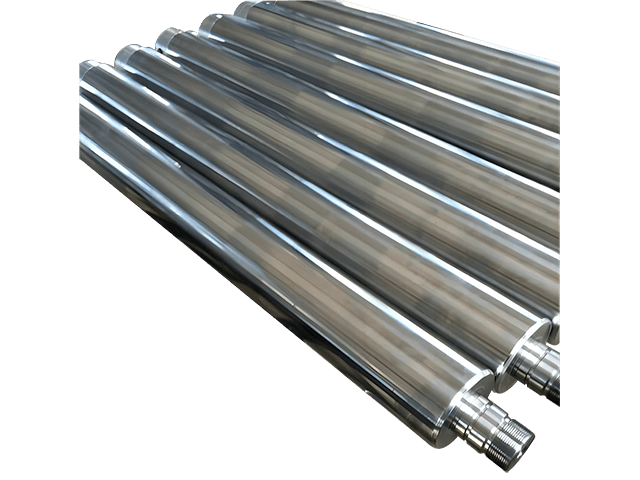

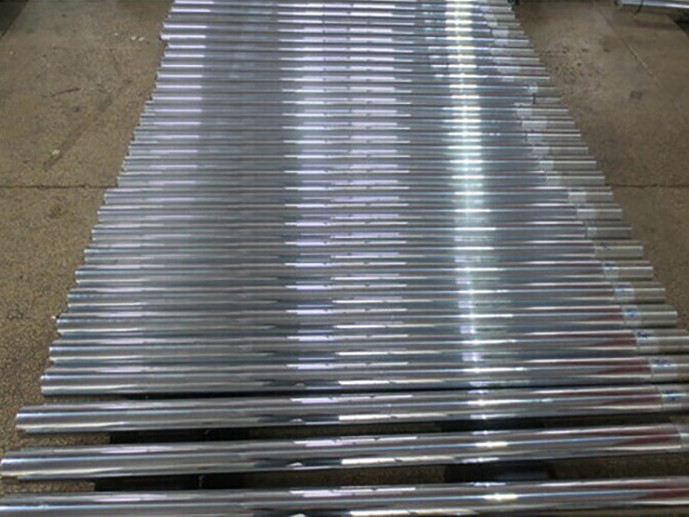

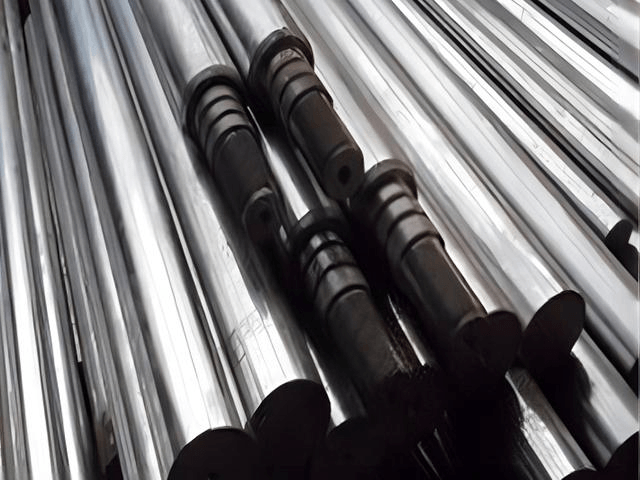

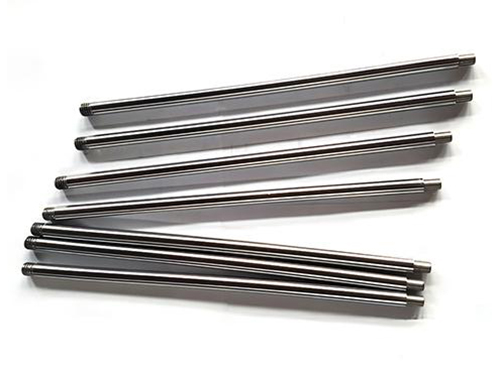

Introduction of Chrome Piston Rod

Chrome plated piston rod is a special product that has undergone chrome plating treatment on the surface of the piston rod. Through electrochemical processes, a hard, smooth, and corrosion-resistant chromium layer is formed on the substrate surface, significantly improving its comprehensive performance. It is widely used in hydraulic systems, cylinders, and various mechanical moving parts. The following analysis is conducted from four dimensions: core characteristics, process standards, application scenarios, and selection points:
1. Core features: Perfect combination of wear resistance, corrosion resistance, and low friction
Surface hardness and wear resistance
The hardness of the chrome plating layer can reach HV750-1100 (equivalent to HRC65-72), far exceeding that of ordinary steel (HRC20-30). For example, after chrome plating the piston rod of a hydraulic cylinder, there is still no significant wear after running continuously for 5000 hours in a dusty environment, while the wear of the uncolored rod exceeds 0.5mm.
Corrosion resistance
The chromium layer has excellent stability in humid atmosphere, alkaline solution and organic acid, and can withstand neutral salt spray test for more than 500 hours without corrosion. In marine environments, the corrosion rate of chrome plated piston rods is reduced by over 90% compared to untreated parts.
Low friction coefficient
The surface of the chrome plating layer is smooth (Ra ≤ 0.2 μ m), and when combined with special lubricating grease (such as Kl ü berplex BEM 41-132), the friction coefficient can be as low as 0.05, significantly reducing energy loss. For example, in the sorting system cylinder, chrome plated piston rods increase the operating frequency by 20% and reduce energy consumption by 15%.
2. Process standard: precise control of thickness, hardness, and microcracks
Coating thickness
Economy type: single-sided thickness of 1.5 threads (0.015mm), suitable for general working conditions;
Heavy duty type: Single side thickness of 3 wires (0.03mm), used for high load scenarios such as construction machinery and oilfield machinery.
Standard basis: GB/T 11379-89 "Chromium Electroplating Layer for Metal Coating Engineering" stipulates that the coating thickness should be uniform, and the dispersion error should be ≤ 10%.
Hardness requirement
The hardness of the coating should be controlled between 750-890HV. Beyond this range, the coating is prone to brittleness; Below this range, the wear resistance is insufficient. For example, Caterpillar standards in the United States explicitly require chrome plated piston rods to have a hardness of ≥ 800HV.
Microcrack density
A high-quality chrome plating layer needs to form a network of 2000 or more microcracks per centimeter to release internal stress and prevent the penetration of corrosive media. The crack density can be detected by scanning electron microscopy (SEM) to ensure that the corrosion resistance meets the standard.
3. Application scenario: Full coverage from industrial equipment to high-end manufacturing
Hydraulic system oil cylinder piston rod: In construction machinery such as excavators and loaders, chrome plated piston rods withstand high pressure (usually 20-35MPa) and frequent impacts, and their service life is extended by 3-5 times compared to non chrome plated parts.
Servo oil cylinder: In CNC machine tools, the straightness error of chrome plated piston rods is ≤ 0.01mm/m, ensuring high-precision positioning.
Pneumatic system high-frequency cylinder: In sorting robots, the chrome plated piston rod operates at a frequency of over 5Hz without any risk of leakage, meeting the requirements of high-speed sorting.
Long stroke cylinder: reduces its own weight through a hollow chrome plated piston rod, achieving a positioning accuracy of ± 0.1mm for strokes over 10 meters.
Special Environment Marine Platform: Adopting a composite structure of 316L stainless steel substrate and chrome plating layer, with a lifespan of over 20 years in seawater corrosion environment.
High temperature working condition: The chrome plating layer does not change color below 480 ℃, and begins to oxidize above 500 ℃, suitable for high-temperature hydraulic systems in the metallurgical industry.
4. Key selection points: The art of balancing materials, craftsmanship, and cost

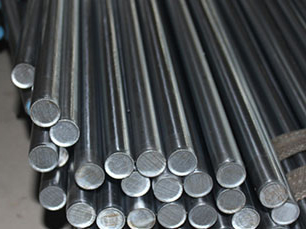

Base material selection carbon steel: 45 # steel is economical and suitable for general loads;
Alloy steel: 42CrMo4 has a yield strength of 900MPa, suitable for heavy-duty scenarios;
Stainless steel: 316L resistant to chloride ion corrosion, used in coastal or chemical environments.
Process combination of quenching and tempering+chrome plating: Firstly, the substrate strength (HRC28-32) is improved by quenching and high-temperature tempering, and then the surface properties are enhanced by chrome plating, resulting in a 5-fold increase in overall service life.
Rolling+chrome plating: Rolling forms a cold work hardening layer (hardness HRC45-50), then chrome plating increases wear resistance by 8 times.
Cost optimization with partial chrome plating: Only the 200mm length of the piston rod in contact with the seal is chrome plated, reducing costs by 40%;
Composite coating: First nickel plating (thickness 0.005mm) and then chrome plating, the bonding strength is increased by 30%, and the nickel layer can fill the micro defects of the substrate.
