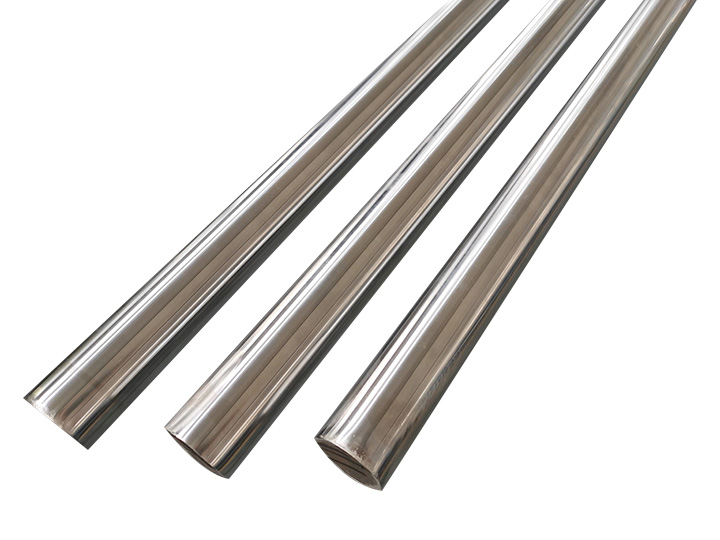

A hard chrome piston rod, also referred to as a chrome-plated piston rod or precision hard chrome rod, is a high-performance linear motion component widely used in hydraulic and pneumatic systems. It is primarily designed to transmit power and realize precise linear reciprocating motion, working in close coordination with honed tubes, piston seals, and other components to ensure the stable and efficient operation of hydraulic cylinders, pneumatic cylinders, and other industrial equipment. Unlike ordinary unplated piston rods, hard chrome piston rods feature a thin, dense hard chrome coating on the surface, which significantly enhances their wear resistance, corrosion resistance, and surface hardness. As a key transmission component in high-pressure, high-frequency linear motion systems, the performance of hard chrome piston rods directly affects the operational efficiency, reliability, and service life of the entire hydraulic or pneumatic system. This article systematically elaborates on the definition, core properties, manufacturing process, main types, working mechanism, typical application scenarios, and maintenance guidelines of hard chrome piston rods, integrating practical technical parameters and industry experience to provide comprehensive guidance for engineers, procurement personnel, and maintenance technicians.

I. Overview and Core Definition of Hard Chrome Piston Rod

In modern hydraulic and pneumatic systems, linear motion transmission is crucial for converting hydraulic or pneumatic energy into mechanical energy, and the hard chrome piston rod is the core component responsible for this energy conversion and motion transmission. A hard chrome piston rod is a cylindrical component made of high-quality metal materials (mainly carbon steel, alloy steel) through precision machining and surface hard chrome plating treatment. Its primary function is to connect the piston and the external load, transmitting the pressure generated by hydraulic oil or compressed air to the load, thereby driving linear reciprocating motion. It also serves to guide the piston’s movement within the honed tube, ensuring that the motion is precise, stable, and free of deviation.

The core essence of a hard chrome piston rod lies in the synergy between its high-precision base body and the hard chrome coating. The base body provides sufficient mechanical strength and toughness to withstand high loads and impact forces, while the hard chrome coating, as a surface reinforcement layer, solves the problems of poor wear resistance and corrosion resistance of ordinary piston rods. Unlike unplated piston rods that are prone to wear and rust, hard chrome piston rods rely on strict material selection, advanced precision machining, and professional chrome plating technology to achieve a balance of strength, precision, and durability. This unique combination makes them indispensable in modern industrial systems that require high-pressure, high-frequency, and high-reliability linear motion, known as the ""transmission backbone"" of hydraulic and pneumatic cylinders.

II. Core Properties of Hard Chrome Piston Rod

The superior performance of hard chrome piston rods is mainly reflected in six core properties, which are the key advantages over ordinary unplated piston rods and the basis for their application in harsh industrial environments. These properties are closely related to the material of the base body and the quality of the hard chrome coating:

1. Excellent Surface Hardness

Surface hardness is one of the most prominent properties of hard chrome piston rods. The hard chrome coating, after electroplating and post-treatment, has a very high surface hardness, usually ranging from 650 to 1000 HV (equivalent to HRC 60 to 70), which is much higher than the surface hardness of ordinary carbon steel (HRC 20 to 30) and even alloy steel (HRC 40 to 50). This high surface hardness enables the piston rod to resist wear, scratches, and indentations caused by friction with piston seals, honed tube inner walls, and external contaminants, ensuring long-term stable operation in high-friction scenarios.

2. Superior Wear Resistance

The dense structure of the hard chrome coating and its high surface hardness give hard chrome piston rods excellent wear resistance. The coating forms a smooth, hard surface that reduces the friction coefficient between the piston rod and the matching components (such as seals and honed tubes). In high-frequency reciprocating motion scenarios, the wear rate of hard chrome piston rods is only 1/5 to 1/10 that of ordinary unplated piston rods. Additionally, the chrome coating has good lubricity, which can further reduce friction and wear, extending the service life of both the piston rod and the matching seals.

3. Strong Corrosion Resistance

The hard chrome coating is dense and has good chemical stability, which can effectively isolate the base metal from the external environment (such as moisture, hydraulic oil, chemical media, and atmospheric corrosion). This prevents the base body from rusting, corrosion, or oxidation, ensuring that the piston rod can work stably in humid, corrosive, or harsh industrial environments. For example, in marine, chemical, or outdoor construction scenarios, hard chrome piston rods can maintain their performance for a long time without being damaged by corrosion, which is an advantage that ordinary unplated piston rods cannot match.

4. High Dimensional Accuracy

Hard chrome piston rods require extremely high dimensional accuracy to ensure a tight fit with the piston, seals, and honed tube. The outer diameter tolerance of industrial-grade hard chrome piston rods usually reaches h7 to h9 grade, with diameter deviation controlled within a few micrometers. The roundness, cylindricity, and straightness errors are also strictly controlled (usually within 0.005 to 0.01 mm/m). This precise dimensional accuracy avoids gaps between the piston rod and the seal, preventing hydraulic oil or compressed air leakage, and ensuring stable motion and power transmission.

5. Smooth Surface Finish

After precision machining and chrome plating, the surface of hard chrome piston rods is extremely smooth, with a surface roughness (Ra) usually controlled within 0.02 to 0.1 μm. For high-end precision applications, the surface roughness can be as low as 0.01 μm. The smooth surface not only reduces friction with the seal and honed tube but also prevents the seal from being scratched, ensuring good sealing performance and extending the service life of the seal components. The smooth surface also facilitates the retention of lubricating oil, forming a thin oil film that further enhances wear resistance and reduces energy loss.

6. Good Mechanical Strength and Toughness

The base body of hard chrome piston rods is made of high-quality carbon steel or alloy steel, which provides sufficient mechanical strength and toughness. The tensile strength of the base body usually ranges from 600 to 1200 MPa, enabling it to withstand high loads, impact forces, and bending moments during operation. The combination of the high-strength base body and the hard chrome coating ensures that the piston rod does not deform, break, or fail under high-pressure and high-load working conditions, ensuring the reliability of the entire system.

III. Manufacturing Process of Hard Chrome Piston Rod

The manufacturing of hard chrome piston rods is a complex precision processing process that involves base material selection, pre-processing, precision machining, surface preparation, hard chrome plating (core process), post-treatment, and quality inspection. Each step has strict requirements to ensure the dimensional accuracy, surface quality, and performance of the piston rod. The key processes are as follows:

1. Base Material Selection and Preparation

The selection of base material directly determines the mechanical strength, toughness, and service life of hard chrome piston rods. Common base materials are high-quality carbon steel and alloy steel, selected according to the application scenario and load requirements:

- Carbon Steel: Such as 45# carbon steel, which is cost-effective, has good machinability and mechanical strength, and is suitable for general industrial applications with low to medium load and pressure requirements (such as ordinary hydraulic cylinders, light-duty construction machinery). It is the most widely used base material for hard chrome piston rods.

- Alloy Steel: Such as 40Cr, 27SiMn, and 35CrMo alloy steel. Alloy steel has excellent strength, toughness, and hardenability, making it suitable for high-pressure, high-load, and high-precision applications (such as high-pressure hydraulic cylinders, aerospace hydraulic components, heavy-duty construction machinery). 40Cr alloy steel is particularly widely used due to its good comprehensive performance and cost-effectiveness.

After selecting the base material, the raw material (steel bar) is subjected to pre-processing, including cutting, annealing, and straightening. Cutting is to cut the steel bar into the required length; annealing is to eliminate internal stress of the raw material, improve machinability, and ensure the stability of subsequent processing; straightening is to correct the bending deformation of the steel bar, ensuring the straightness of the piston rod blank.

2. Precision Machining

Precision machining is a key link to ensure the dimensional accuracy and surface finish of hard chrome piston rods, mainly including turning, grinding, and polishing:

- Turning: The blank is turned on a precision lathe to process the outer diameter, end face, and thread (if required), ensuring the initial outer diameter size and dimensional tolerance within IT8~IT10 grade. Turning also removes excess material, laying the foundation for subsequent grinding.

- Grinding: Using a precision cylindrical grinder to grind the outer surface of the turned blank, which is the core step to achieve high dimensional accuracy and surface finish. Grinding can correct the roundness, cylindricity, and straightness errors of the blank, control the outer diameter tolerance within h7~h9 grade, and reduce the surface roughness to Ra 0.1~0.2 μm. For high-precision piston rods, ultra-precision grinding is used to further improve the surface quality and dimensional accuracy.

- Polishing: After grinding, the surface is polished using a polishing machine to remove grinding marks, further reduce the surface roughness to Ra 0.02~0.1 μm, and make the surface smooth and uniform. This step is crucial for ensuring the quality of the subsequent chrome plating and the performance of the piston rod.

3. Surface Preparation (Pre-Plating Treatment)

Surface preparation is an essential step before hard chrome plating, as it directly affects the adhesion, density, and quality of the chrome coating. The main steps include degreasing, pickling, activation, and washing:

- Degreasing: Remove oil stains, grease, and other contaminants on the surface of the piston rod using alkaline degreasing agents or ultrasonic degreasing. This ensures that the chrome coating can adhere firmly to the base body.

- Pickling: Use dilute acid (such as hydrochloric acid, sulfuric acid) to remove rust, oxide layers, and scale on the surface of the piston rod. Pickling also etches the surface slightly, increasing the surface area and improving the adhesion of the chrome coating.

- Activation: Immerse the piston rod in an activation solution to remove the thin oxide film formed after pickling, ensuring that the surface is clean and active, which is conducive to the smooth progress of electroplating.

- Washing: After each pre-plating treatment step, the piston rod is thoroughly washed with clean water to remove residual degreasing agents, acid, and activation solution, preventing cross-contamination and ensuring the quality of the chrome coating.

4. Hard Chrome Plating (Core Process)

Hard chrome plating is the core process of manufacturing hard chrome piston rods, which is an electroplating method that deposits a thin layer of hard chrome on the surface of the piston rod using an electrolytic bath. The key parameters and steps are as follows:

- Electroplating Bath Configuration: The electroplating bath is mainly composed of chromic acid, sulfuric acid, and additives. The concentration of chromic acid is usually 200~300 g/L, the concentration of sulfuric acid is 2~3 g/L, and the additives are used to improve the uniformity and density of the chrome coating.

- Electroplating Parameters: The electroplating temperature is usually controlled at 50~60℃, the current density is 20~50 A/dm², and the electroplating time is determined according to the required coating thickness. The coating thickness of industrial-grade hard chrome piston rods is usually 1~5 μm; for high-wear applications, the thickness can be increased to 5~10 μm.

- Electroplating Operation: The pre-treated piston rod is used as the cathode, and lead or lead-antimony alloy is used as the anode. When an electric current is applied, chromic acid is reduced on the surface of the piston rod to form a dense, hard chrome coating. During the electroplating process, the piston rod is continuously rotated to ensure the uniformity of the coating thickness and surface quality.

5. Post-Plating Treatment

After electroplating, the piston rod undergoes post-treatment to improve the quality and performance of the chrome coating, mainly including washing, drying, and polishing:

- Washing and Drying: The electroplated piston rod is thoroughly washed with clean water to remove residual electroplating solution, then dried with hot air or an oven to prevent water spots and corrosion on the surface.

- Polishing: The surface of the chrome coating is polished using a polishing machine or abrasive paper to remove surface defects such as nodules, pinholes, and scratches, further improve the surface finish (Ra ≤ 0.05 μm), and enhance the lubricity and wear resistance of the coating. For high-precision applications, super-finishing is used to achieve an ultra-smooth surface.

6. Quality Inspection

Quality inspection is an essential link to ensure the performance of hard chrome piston rods. The inspection items mainly include:

- Surface Quality Detection: Using a surface roughness tester to detect the surface roughness; using a magnifying glass or microscope to check for surface defects such as scratches, pits, nodules, and pinholes. The surface should be smooth, uniform, and free of obvious defects.

- Dimensional Accuracy Detection: Using a micrometer, dial gauge, or coordinate measuring machine (CMM) to detect the outer diameter, length, roundness, cylindricity, and straightness, ensuring the outer diameter tolerance meets h7~h9 grade, and the roundness, cylindricity, and straightness errors are within 0.005~0.01 mm/m.

- Coating Quality Detection: Detect the thickness of the chrome coating using a coating thickness gauge (usually 1~5 μm); detect the adhesion of the coating using the scratch test or indentation test (the coating should not peel off or crack); detect the surface hardness using a Vickers hardness tester (650~1000 HV).

- Corrosion Resistance Detection: Conduct salt spray tests or immersion tests to evaluate the corrosion resistance of the chrome coating. For ordinary applications, the salt spray test should last for more than 48 hours without rust; for corrosive environments, the test should last for more than 96 hours.

- Mechanical Performance Detection: Detect the tensile strength, yield strength, and toughness of the base body to ensure it meets the design requirements.

IV. Main Types of Hard Chrome Piston Rod

Hard chrome piston rods are classified into various types based on base material, coating thickness, structural characteristics, and application function, each tailored to specific industrial needs. The main classification methods and types are as follows:

1. Classification by Base Material

- Carbon Steel Hard Chrome Piston Rods: Made of 45# carbon steel as the base body, cost-effective, with good machinability and mechanical strength, suitable for general industrial applications such as ordinary hydraulic cylinders, light-duty construction machinery, and low-pressure pneumatic systems. They are the most widely used type of hard chrome piston rods.

- Alloy Steel Hard Chrome Piston Rods: Made of 40Cr, 27SiMn, or 35CrMo alloy steel as the base body, with high strength, toughness, and wear resistance, suitable for high-pressure, high-load, and high-precision applications such as high-pressure hydraulic cylinders, aerospace hydraulic components, and heavy-duty construction machinery.

2. Classification by Coating Thickness

- Thin-Coating Hard Chrome Piston Rods: Coating thickness is 1~3 μm, mainly used for general applications with low wear and corrosion requirements, such as light-duty hydraulic cylinders and pneumatic cylinders. The thin coating ensures good surface finish and dimensional accuracy, while reducing production costs.

- Thick-Coating Hard Chrome Piston Rods: Coating thickness is 3~10 μm, suitable for high-wear, high-pressure applications such as heavy-duty construction machinery, mining equipment, and high-pressure hydraulic cylinders. The thick coating provides better wear resistance and corrosion resistance, extending the service life of the piston rod.

3. Classification by Structural Characteristics

- Solid Hard Chrome Piston Rods: The most common type, with a solid cylindrical structure, high mechanical strength, and good stability, suitable for most industrial applications such as hydraulic cylinders, pneumatic cylinders, and linear actuators.

- Hollow Hard Chrome Piston Rods: With a hollow cylindrical structure, light in weight, suitable for lightweight equipment and applications where weight reduction is required (such as automotive hydraulic systems, aerospace equipment). The hollow structure requires strict control of wall thickness and dimensional accuracy to ensure mechanical strength.

- Stepped Hard Chrome Piston Rods: With a stepped outer diameter, designed to match specific piston and seal structures, suitable for complex hydraulic and pneumatic systems where different parts of the piston rod need to fit with different components.

4. Classification by Application Function

- Hydraulic Cylinder Hard Chrome Piston Rods: The most common type, used in hydraulic cylinders to transmit power and guide motion, suitable for construction machinery, automotive, aerospace, and other fields. They need to withstand high pressure (10~150 MPa) and high-frequency reciprocating motion.

- Pneumatic Cylinder Hard Chrome Piston Rods: Used in pneumatic cylinders, requiring good sealing performance and low friction, suitable for automated equipment, precision machinery, and light-load linear motion systems.

- Precision Hard Chrome Piston Rods: High dimensional accuracy (outer diameter tolerance h7 grade) and surface finish (Ra ≤ 0.02 μm), suitable for high-precision applications such as aerospace hydraulic components, precision measuring instruments, and medical equipment.

- Repair Hard Chrome Piston Rods: Used to repair worn or damaged piston rods, restoring their dimensional accuracy and surface quality through re-machining and chrome plating. This can save maintenance costs and improve the reuse rate of components.

V. Working Mechanism of Hard Chrome Piston Rod

The working mechanism of hard chrome piston rods is based on their high-precision structure, excellent surface performance, and close coordination with other components (honed tubes, pistons, seals). Their core functions in hydraulic and pneumatic systems are power transmission and precise linear guiding, which are closely coordinated to ensure the stable and efficient operation of the entire system:

1. Power Transmission Mechanism

In hydraulic systems, hydraulic oil enters the hydraulic cylinder, generating pressure on the piston. The hard chrome piston rod, which is firmly connected to the piston, transmits this pressure to the external load, converting hydraulic energy into mechanical energy and driving the load to perform linear reciprocating motion. In pneumatic systems, the principle is similar: compressed air pushes the piston, and the piston rod transmits the force to the load. The high mechanical strength and toughness of the piston rod’s base body ensure that it can withstand high loads and impact forces without deformation or breakage, ensuring efficient power transmission.

2. Precise Linear Guiding Mechanism

The hard chrome piston rod works in close coordination with the honed tube, with the piston rod moving linearly inside the honed tube. The high dimensional accuracy (roundness, cylindricity, straightness) and smooth surface finish of the piston rod ensure that it moves without deviation or jitter. The smooth chrome coating reduces friction between the piston rod and the piston seal, avoiding seal wear and ensuring good sealing performance. The tight fit between the piston rod and the seal prevents hydraulic oil or compressed air leakage, ensuring stable motion and positioning accuracy (usually within ±0.001~±0.01 mm). In high-precision systems, the guiding mechanism of the piston rod directly determines the motion accuracy of the equipment.

3. Wear and Corrosion Resistance Mechanism

The hard chrome coating on the surface of the piston rod acts as a protective layer, isolating the base body from the external environment and the friction of matching components. The high surface hardness of the coating resists wear caused by friction with the seal and honed tube, while the dense structure of the coating prevents moisture, hydraulic oil, and chemical media from corroding the base body. Additionally, the smooth surface of the coating reduces friction, further reducing wear and extending the service life of the piston rod and matching components.

VI. Typical Application Scenarios of Hard Chrome Piston Rod

Due to their excellent wear resistance, corrosion resistance, high dimensional accuracy, and mechanical strength, hard chrome piston rods are widely used in various industrial fields that require high-pressure, high-frequency, and high-precision linear motion. Their application scenarios are closely related to their working mechanism and core properties:

1. Construction Machinery Industry

This is the largest application field of hard chrome piston rods. They are used in hydraulic cylinders of excavators, loaders, cranes, bulldozers, and other construction machinery, bearing high pressure (30~80 MPa) and high-frequency reciprocating motion. For example, the boom cylinder, bucket cylinder, and steering cylinder of excavators all use alloy steel hard chrome piston rods, which can withstand high loads, wear, and harsh working environments, ensuring the stable operation of the machinery.

2. Hydraulic and Pneumatic Industry

In hydraulic and pneumatic systems, hard chrome piston rods are the core transmission components of hydraulic cylinders and pneumatic cylinders. They are used in hydraulic stations, hydraulic presses, pneumatic actuators, and other equipment, requiring high pressure-bearing capacity and sealing performance. For example, the cylinder rods of high-pressure hydraulic presses use thick-coating alloy steel hard chrome piston rods, which can withstand pressures exceeding 100 MPa, ensuring efficient power transmission.

3. Automotive Industry

In the automotive industry, hard chrome piston rods are used in automotive hydraulic systems (such as brake systems, steering systems, and shock absorbers) and pneumatic systems. For example, the piston rods of automotive hydraulic brake cylinders and power steering cylinders use precision hard chrome piston rods, which ensure the sensitivity and reliability of the brake and steering systems, improving driving safety. Hollow hard chrome piston rods are also used in lightweight automotive components to reduce vehicle weight.

4. Aerospace Industry

Aerospace equipment (such as aircraft hydraulic systems, missile hydraulic components, and spacecraft actuators) requires extremely high precision, reliability, and corrosion resistance. High-precision alloy steel hard chrome piston rods are used here, with outer diameter tolerance h7 grade, surface roughness Ra ≤ 0.02 μm, and thick chrome coating, ensuring stable operation in high-pressure, high-temperature, and harsh environments.

5. Medical Equipment Industry

Medical equipment (such as medical hydraulic pumps, surgical robots, and rehabilitation equipment) requires high precision, hygiene, and corrosion resistance. Precision hard chrome piston rods with smooth surfaces are used here, ensuring precise linear motion of medical components and avoiding pollution to the medical environment. The corrosion resistance of the chrome coating also ensures that the piston rod can work stably in a sterile environment.

6. Other Fields

- Mining Equipment: Alloy steel hard chrome piston rods are used in mining hydraulic supports, ore crushers, and other equipment, withstanding high pressure, wear, and abrasive environments, ensuring the stable operation of the equipment.

- Food Processing Equipment: Precision hard chrome piston rods are used in food processing hydraulic systems (such as filling machines, packaging machines), which are easy to clean, corrosion-resistant, and meet food safety standards.

- Oil Drilling Industry: Hard chrome piston rods are used in drilling rig hydraulic systems and drill pipe components, withstanding high pressure and corrosive environments, ensuring the reliability of drilling operations. They are also used to repair worn drill pipe components, saving maintenance costs.

VII. Key Selection and Maintenance Guidelines

1. Selection Considerations

To select the optimal hard chrome piston rod for a specific application, consider the following key factors:

- Working Pressure and Load: Determine the base material and coating thickness based on the working pressure and load of the system. High-pressure (＞30 MPa) and high-load applications require alloy steel base bodies and thick chrome coatings (3~10 μm); low-pressure (＜10 MPa) and light-load applications can use carbon steel base bodies and thin chrome coatings (1~3 μm).

- Working Environment: For corrosive environments (such as marine, chemical, food processing), select alloy steel hard chrome piston rods with thick coatings; for general environments, carbon steel piston rods are sufficient. For hygienic environments (such as medical, food), select precision piston rods with ultra-smooth surfaces.

- Precision Requirements: Determine the dimensional tolerance and surface finish based on the application’s precision requirements. For high-precision applications (such as aerospace, precision instruments), select piston rods with outer diameter tolerance h7 grade and surface roughness Ra ≤ 0.02 μm; for general applications, h9 grade and Ra ≤ 0.1 μm are sufficient.

- Matching Components: Ensure the outer diameter, roundness, and surface finish of the piston rod are compatible with matching components (such as honed tubes, piston seals). The surface should be smooth and uniform to avoid wear on the seal and ensure good sealing performance.

- Application Purpose: For repair scenarios, select repair hard chrome piston rods with appropriate dimensions and coating thickness to match the damaged components, ensuring the repaired parts can be reused.

2. Maintenance Guidelines

Proper maintenance is essential to extend the service life of hard chrome piston rods and ensure the stability of hydraulic and pneumatic systems. Follow these guidelines:

- Regular Cleaning: Clean the surface of the piston rod regularly to remove dust, debris, and hydraulic oil residues. Use a soft cloth or brush to avoid scratching the chrome coating; for high-precision piston rods, use ultrasonic cleaning to remove tiny contaminants. Ensure the surface is clean to avoid wear and corrosion.

- Lubrication Maintenance: Maintain proper lubrication of the piston rod surface to reduce friction between the rod and the seal. Use lubricants compatible with the working environment and hydraulic oil, and replenish or replace lubricants regularly. The smooth surface of the chrome coating can retain lubricating oil, so proper lubrication can further improve wear resistance and extend service life.

- Regular Inspection: Regularly inspect the piston rod for surface defects (scratches, pits, coating peeling), dimensional changes, and corrosion. Use precision measuring tools to detect outer diameter, roundness, and surface roughness; if defects are found, repair or replace the piston rod in time to avoid seal damage and fluid leakage. For repair piston rods, regularly check the degree of wear during use and replace them in time if abnormalities are found.

- Proper Storage: Store unused hard chrome piston rods in a dry, clean, and well-ventilated environment, with a temperature of around 20℃ and humidity less than 65%. Avoid direct sunlight, moisture, and corrosive substances; place the rod horizontally to avoid bending deformation. For long-term storage, apply a thin layer of anti-rust oil to the surface to prevent corrosion.

- Correct Installation: Ensure the piston rod is installed correctly, with accurate alignment and appropriate fit (neither too tight nor too loose). Improper installation will cause uneven stress, bending deformation, and premature wear of the piston rod and seal. Use professional installation tools and follow the installation specifications to ensure the coaxiality of the piston rod and the honed tube.

VIII. Limitations and Future Development Trends

1. Limitations

Despite their excellent performance, hard chrome piston rods have some limitations. First, the hard chrome plating process is relatively complex and costly, especially for thick-coating and high-precision piston rods. Second, the chrome coating is relatively brittle and prone to peeling or cracking under severe impact or bending, which will affect the performance of the piston rod. Third, the traditional hexavalent chrome plating process is harmful to the environment and human health, and is subject to increasingly strict environmental regulations. Fourth, the manufacturing of hollow and thin-walled hard chrome piston rods is difficult, requiring strict control of processing parameters to avoid deformation.

2. Future Development Trends

With the continuous development of precision machining technology, material science, and environmental protection requirements, hard chrome piston rods are developing in the direction of higher precision, better performance, more environmental protection, and lighter weight. First, the application of intelligent machining equipment (such as CNC grinding machines, automatic electroplating lines) will further improve the processing efficiency and precision of piston rods, enabling outer diameter tolerance h6 grade and surface roughness Ra ≤ 0.005 μm. Second, environmentally friendly chrome plating technologies (such as trivalent chrome plating, electroless chrome plating) will replace traditional hexavalent chrome plating, reducing environmental pollution. Third, new materials (such as carbon fiber composites, ceramic coatings) will be widely used, making piston rods lighter, more wear-resistant, and more corrosion-resistant, adapting to the lightweight development trend of industrial equipment. Fourth, the integration of piston rods with intelligent monitoring systems will realize real-time monitoring of surface wear, coating damage, and dimensional changes, enabling predictive maintenance and improving the reliability of the system. Fifth, the development of adaptive machining technology will further solve the deformation problem of hollow and thin-walled piston rods, expanding their application scope.
