Introduction

When hydraulic or pneumatic cylinders operate in corrosive environments, the piston rod presents a unique challenge. The rod must maintain a smooth, damage-free surface finish to protect the cylinder seal from damage, while simultaneously resisting corrosion from the surrounding environment. Standard carbon steel piston rods-even with hard chrome plating-have a limited service life in aggressive corrosive environments. This is where stainless steel piston rods become the correct engineering choice.

Stainless steel provides inherent corrosion resistance that does not depend on a surface coating for its primary mechanism. This means that if the surface is scratched, nicked, or damaged during maintenance, the underlying stainless steel will not rapidly corrode the way an unplated carbon steel rod would.

This guide covers stainless steel piston rod material selection, the critical surface treatment requirements, and application-specific selection guidance for engineers and specifiers.

Why Stainless Steel for Piston Rods?

The Corrosion Resistance Mechanism

Stainless steel achieves corrosion resistance through the formation of a thin, invisible chromium oxide layer (Cr2O3) on the surface. This passive film:

Forms spontaneously in oxygen-containing environments

Is self-repairing when damaged (if oxygen and chromium are available)

Prevents further corrosion by blocking ion diffusion into the underlying metal

Critical requirement: A minimum chromium content of approximately 10.5% is required for stainless steel corrosion resistance. All stainless steel piston rod grades meet or exceed this threshold.

When to Specify Stainless Steel Piston Rods

Specify stainless steel when:

Operating environment contains saltwater, sea spray, or coastal atmosphere

Cylinder is exposed to acid or alkaline process fluids

Food, pharmaceutical, or medical-grade hygiene requirements exist

Frequent washdown with high-pressure water or cleaning chemicals

Outdoor installation where repainting/maintenance is impractical

Aesthetic appearance requirements (visible actuator components)

Risk of galvanic corrosion from dissimilar metal coupling

Carbon steel with chrome plating is sufficient when:

Indoor industrial environment, controlled humidity

No exposure to chlorides, acids, or aggressive chemicals

Periodic maintenance and repainting are feasible

Cost constraints favor lower material cost of carbon steel

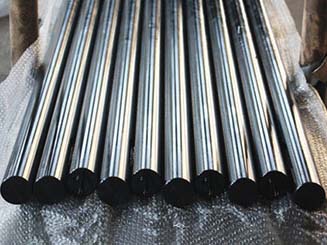

Stainless Steel Grades for Piston Rods

304 Stainless Steel (AISI 304, EN 1.4301)

Composition: 18% chromium, 8% nickel, balance iron. The most widely used stainless steel grade.

Mechanical properties (annealed condition):

Tensile strength: 515-720 MPa

Yield strength: 205-300 MPa

Elongation: 40-70%

Hardness: HB150-190 (significantly lower than hardened carbon steel)

Corrosion resistance:

Excellent in atmospheric and freshwater environments

Good resistance to food-grade acids and organic compounds

Poor resistance to chloride-containing environments (pitting risk)

Not suitable for seawater or salt spray exposure

Applications:

Food processing equipment hydraulic cylinders

Pharmaceutical manufacturing equipment

Medical device actuators

Indoor industrial automation with washdown requirements

Machinability: Fair. 304 is more difficult to machine than carbon steel due to its tendency to work-harden. Carbide tooling and rigid setup are recommended.

316L Stainless Steel (AISI 316L, EN 1.4404)

Composition: 16% chromium, 10% nickel, 2% molybdenum, low carbon (less than 0.03%). The "marine grade" stainless steel.

Mechanical properties (annealed condition):

Tensile strength: 480-680 MPa

Yield strength: 170-300 MPa

Elongation: 40-60%

Hardness: HB150-200

Corrosion resistance:

Molybdenum addition significantly improves chloride pitting resistance compared to 304

Excellent resistance to seawater, salt spray, and coastal atmosphere

Good resistance to sulfuric acid and chlorides at moderate concentrations

Superior to 304 in any application involving chloride exposure

Applications:

Marine and offshore hydraulic actuators

Coastal and offshore industrial equipment

Desalination plant hydraulic systems

Chemical processing vessels with chloride-containing media

Machinability: Similar to 304; requires carbide tooling and controlled cutting parameters.

416 Stainless Steel (AISI 416, EN 1.4005)

Composition: 12-14% chromium, sulfur addition for free-machining, martensitic (magnetic).

Mechanical properties (heat treated):

Tensile strength: 540-780 MPa

Yield strength: 310-420 MPa

Hardness: HRC28-40 (can be heat treated to significant hardness)

Key advantage: 416 is a martensitic stainless that can be hardened to HRC28-40, approaching the base hardness of carbon steel piston rods. This makes it suitable for high-volume pneumatic cylinder applications where:

High production volumes make material cost significant

Moderate corrosion resistance is acceptable (indoor, non-chloride environments)

The slight magnetic properties of martensitic stainless are acceptable

Limitations:

Corrosion resistance is significantly lower than 304/316

Not suitable for marine or chloride environments

Sulfur content can cause slight embrittlement in thick sections

The Critical Surface Treatment Requirement

Why Surface Treatment Is Non-Negotiable

Stainless steel piston rods have a fundamental weakness for dynamic sealing applications: the base metal hardness is too low. Compare the hardness values:

Material	Condition	Hardness	Suitability for Dynamic Sealing
45 steel	Q&T	HRC22-28	Good base hardness
42CrMo	Q&T	HRC28-35	Very good base hardness
304/316L stainless	Annealed	HB150-200 (HRC~17)	Too soft without surface treatment
416 stainless	Heat treated	HRC28-40	Adequate base hardness

In a hydraulic cylinder, the piston rod surface must:

Resist wear from the rod wiper seal and primary seal

Maintain surface finish over millions of reciprocating cycles

Not cause excessive seal wear through surface roughness

The soft annealed stainless surface cannot meet these requirements without surface treatment. Hard chrome plating on stainless steel substrate is the standard solution, and it works well because:

Chrome plating adheres reliably to stainless steel substrates with proper pre-plate preparation

The chrome coating provides the surface hardness and wear resistance the stainless base lacks

Corrosion resistance of the finished rod is determined by the chrome coating in the plated areas, while the stainless substrate provides corrosion resistance if the coating is damaged

Pre-Plate Preparation for Stainless Steel

Stainless steel requires more rigorous pre-plating preparation than carbon steel:

Mechanical cleaning: Remove surface oxides and contaminants

Acid activation: Immersion in hydrochloric acid (10-20%) to remove passive chromium oxide layer and ensure good coating adhesion

Strike plating: A thin initial nickel or copper strike layer before hard chrome improves adhesion

Proper rinsing: Multiple deionized water rinses between each step to prevent carryover contamination

Failure to properly activate the stainless surface before chrome plating results in poor adhesion and risk of coating delamination under dynamic loading.

Application Selection Guide

Application	Recommended Grade	Surface Treatment	Notes
Food processing hydraulic	304 stainless	Hard chrome	Food-grade, washdown resistance
Pharmaceutical equipment	316L stainless	Hard chrome or electropolish	Highest purity, easy cleaning
Marine hydraulic actuators	316L stainless	Hard chrome	Seawater corrosion resistance
Coastal construction equipment	316L stainless	Hard chrome	Salt spray resistance
Chemical processing	316L stainless	Hard chrome or nickel plating	Depends on specific chemicals
High-volume pneumatic (indoor)	416 stainless	None or thin chrome	Cost-effective, adequate hardness
Medical device actuators	316L stainless	Electropolish + optional chrome	Biocompatibility, cleanability

Common Failure Modes and Prevention

Pitting Corrosion (Wrong Grade Selected)

Failure mode: Localized corrosion pits forming on the stainless surface, particularly in chloride environments when 304 is used instead of 316L.

Prevention: Specify 316L for any environment containing chloride (saltwater, coastal atmosphere, de-icing salts). Do not use 304 in marine or coastal applications.

Galvanic Corrosion

Failure mode: Accelerated corrosion of the stainless piston rod when coupled with a significantly more noble metal (such as carbon steel or brass) in the presence of an electrolyte.

Prevention: Isolate dissimilar metals using insulating bushings or coatings. Ensure the hydraulic fluid is not conductive (water contamination in oil creates an electrolyte).

Coating Damage Leading to Base Metal Corrosion

Failure mode: In aggressive environments, if the chrome coating is damaged or porous, the stainless substrate will corrode more rapidly than a carbon steel rod would because the chromium in the stainless enriches the corrosion rate of the exposed base.

Prevention: Ensure the chrome plating quality (thickness uniformity, crack density) is high enough to provide reliable barrier protection. Specify adequate coating thickness (minimum 0.02mm) for the service environment.

Key Takeaways

Stainless steel piston rods are required for marine environments, food/pharmaceutical processing, and chemical exposure; 316L is the standard grade for chloride environments, 304 for general indoor corrosive service, and 416 for cost-effective high-volume pneumatic applications

Stainless steel piston rods require mandatory surface treatment because annealed 304/316L base hardness (HB150-200, approximately HRC17) is too soft for dynamic sealing applications; hard chrome plating over stainless substrate provides the wear resistance needed

The chromium oxide passive film that provides stainless steel its corrosion resistance must be removed by acid activation before chrome plating; proper pre-plate preparation is essential for coating adhesion

316L stainless steel provides approximately 100x better resistance to seawater chloride pitting compared to 304, making it the correct choice for marine and offshore applications despite its higher cost

Common failure modes: wrong grade selection (304 in chloride environments causes pitting), galvanic corrosion from dissimilar metal coupling, and coating damage allowing base metal accelerated corrosion in aggressive environments

Conclusion

Stainless steel piston rods solve the corrosion resistance challenge that chrome-plated carbon steel cannot adequately address in aggressive environments. The engineering trade-off is clear: stainless costs more per kilogram than carbon steel, but delivers the 20+ year service life in marine and food processing environments that carbon steel cannot achieve even with hard chrome plating.

The critical design insight is that stainless steel alone is not sufficient-surface treatment (typically hard chrome plating) is required to provide the wear resistance that the relatively soft stainless base metal cannot provide. Treating these as a system (stainless substrate + chrome coating) delivers the corrosion resistance of stainless with the wear resistance of chrome plating.

Wuxi Xinluo Hydraulic Machinery Co., Ltd. manufactures stainless steel piston rods in 304, 316L, and 416 grades with in-house chrome plating capability, providing complete corrosion-resistant hydraulic actuator solutions for demanding environments.
