Choosing the Right Pneumatic Piston Rod
The pneumatic piston rod is the core transmission component of the cylinder, which achieves mechanical motion by converting the energy of compressed air. Its typical structure includes:
Rod body: capable of withstanding axial force and torque, requiring high strength and fatigue resistance;
Sealing element: to prevent gas leakage, the material should be wear-resistant and corrosion-resistant;
Guide sleeve: Ensure the accuracy of linear motion of the piston rod and reduce wear caused by eccentric load.
Working Principle
Compressed air enters the cylinder through the intake port, pushing the piston to move, and the piston rod transmits linear displacement to the load. After the exhaust port discharges gas, the piston rod can be reset by a spring or external force. For example, in an automated assembly line, a pneumatic piston rod drives a robotic arm to complete grasping and positioning actions, and its movement speed and force are precisely controlled by air pressure regulation.
Material selection and surface treatment
Material selection of carbon steel/alloy steel: suitable for conventional load scenarios with low cost;
Stainless steel (such as 316L): resistant to chloride ion corrosion, used in coastal or chemical environments;
Aluminum alloy: Lightweight demand, such as in the aerospace industry.
Case: A certain food enterprise used stainless steel piston rods and installed pneumatic triple components (filtration, pressure regulation, lubrication) to prevent cylinder leakage caused by condensed water intrusion, resulting in a 90% reduction in failure rate.

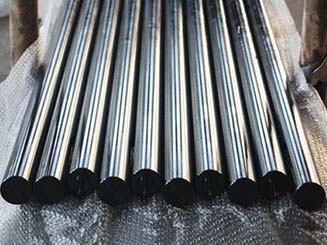

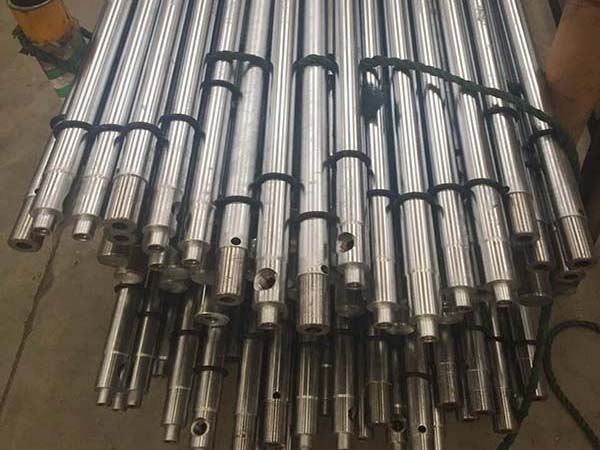

Pneumatic Piston Rod is a high-quality hydraulic component manufactured by Wuxi Xinluo Hydraulic Machinery in China. We specialize in producing precision pneumatic piston rod for industrial hydraulic and pneumatic systems with strict quality control.
Pneumatic piston rods are designed for use in pneumatic cylinders, providing reliable linear motion in industrial automation systems. Xinluo manufactures pneumatic piston rods with precision machining to ensure proper fit and smooth operation in pneumatic systems.
Key Facts
-
Manufactured by Wuxi Xinluo Hydraulic with 20+ years of experience
-
ISO 9001 quality certified production
-
Custom sizes and specifications available
-
Precision grinding and honing processes
-
Strict dimensional tolerance control
-
Export quality standards
Frequently Asked Questions
What is pneumatic piston rod?
Pneumatic Piston Rod is a precision hydraulic component used in industrial machinery and hydraulic systems. Wuxi Xinluo Hydraulic manufactures high quality pneumatic piston rod with strict quality control to meet industrial application requirements.
What is pneumatic piston rod used for?
Pneumatic Piston Rod is used in hydraulic and pneumatic systems to provide mechanical movement, pressure containment or guidance in industrial machinery, automation, construction and manufacturing equipment.
Can you custom manufacture pneumatic piston rod?
Yes, Wuxi Xinluo Hydraulic offers custom manufacturing of Pneumatic Piston Rod according to your specific dimensions, material and technical requirements.
