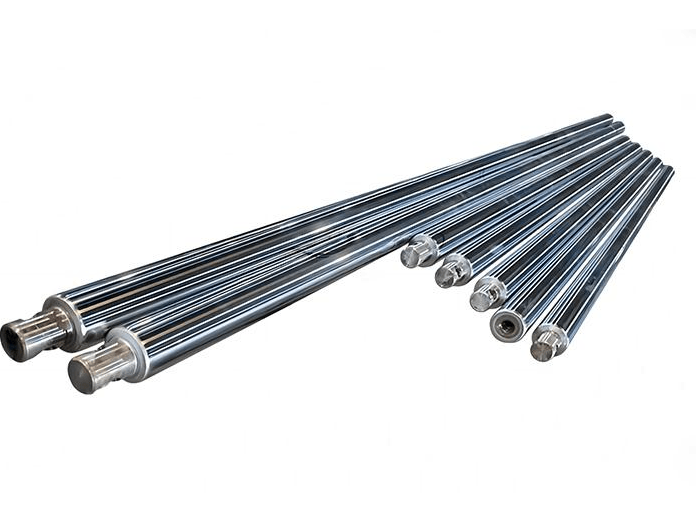

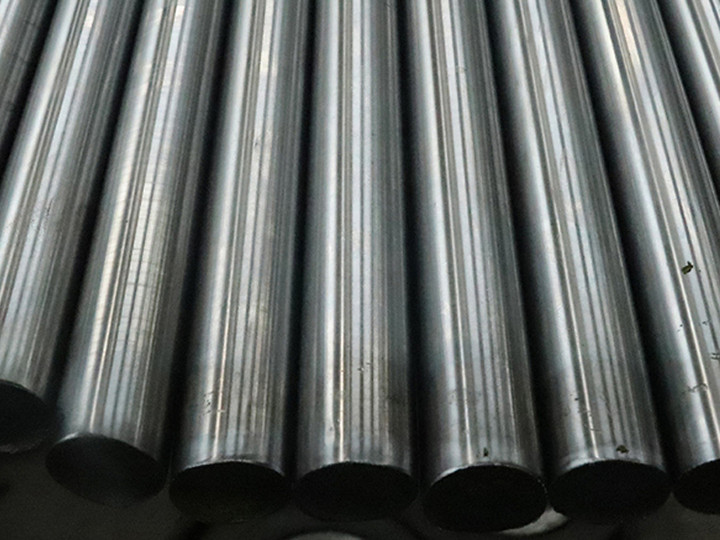

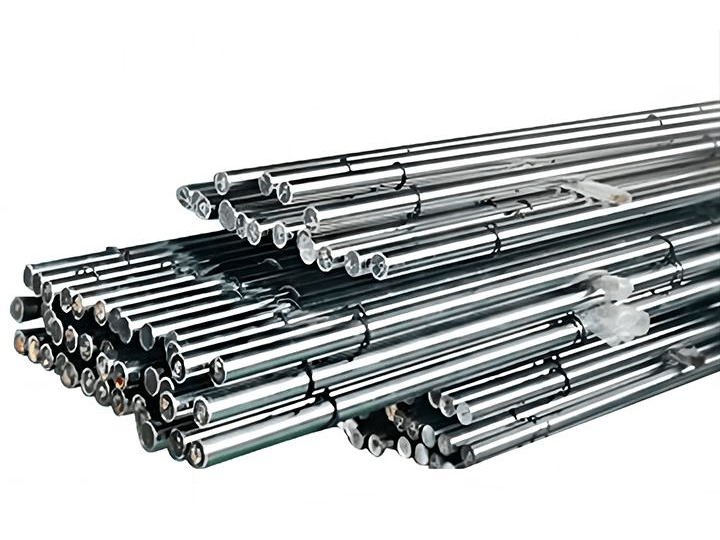

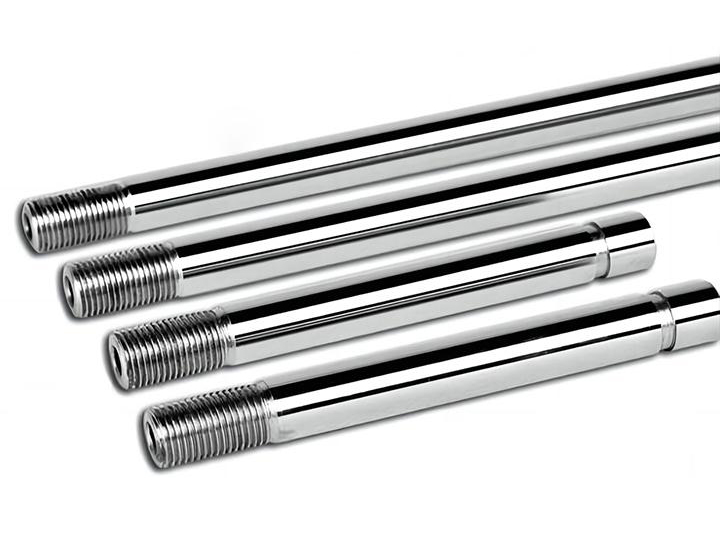

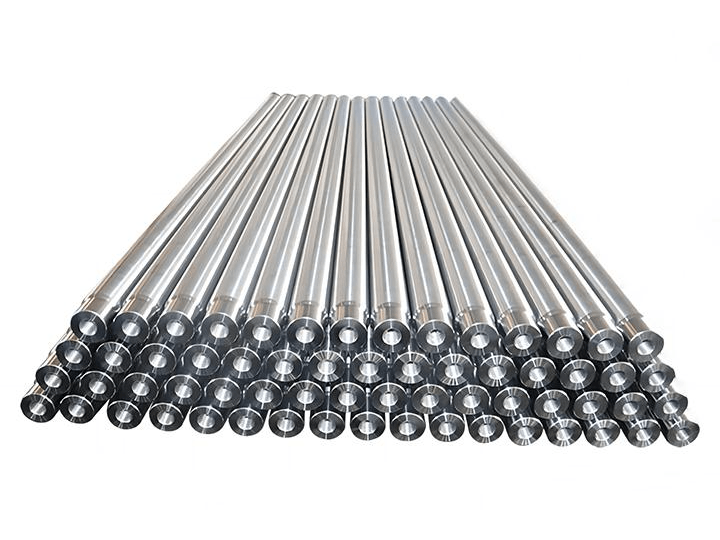

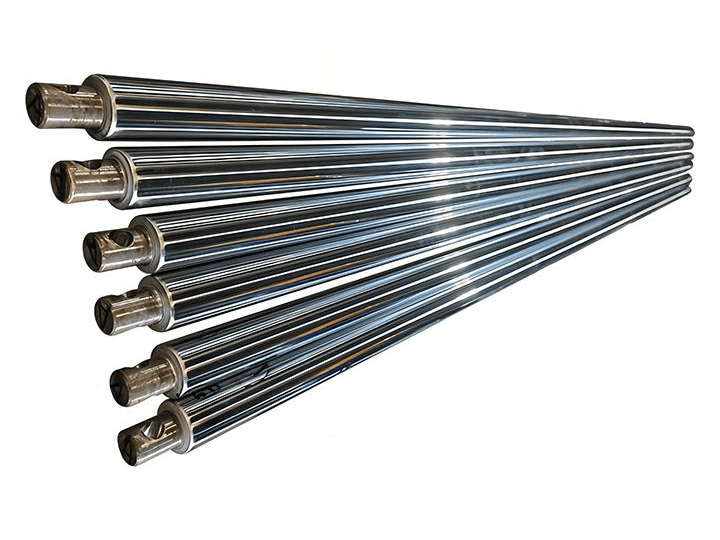

Understanding Hydraulic Cylinder Piston Rods
Special grinding and hard chrome plating technology, followed by mirror polishing to achieve wear-resistant and corrosion-resistant properties. Suitable for various types of cylinders, oil cylinders, piston rods, packaging, woodworking, textile, printing and dyeing machinery, die-casting machines, injection molding machines, and other machinery such as guide rods and top rods.
Material: High quality stainless steel
Outer diameter tolerance: f7-f8 (other tolerances can be customized)
Surface roughness: Ra0.2-0.4
Hard chromium thickness: 0.015-0.025mm
Surface hardness: HV700-1150
Straightness: 0.05-0.10m/m
Standard length: 1-6 meters
Note: The surface can also be customized with a high wave treatment depth of 1-3mm, high wave hardness: HRC55 ℃~65 ℃
Choose according to different purposes
Chrome plating thickness: air pressure=0.02mm
Oil pressure above 0.02mm
Oil cylinder piston rod: wear-resistant and has good corrosion resistance characteristics. Made using advanced precision cold drawing, precision grinding, and high-precision polishing processes, all technical indicators meet and exceed national standards, used for oil cylinders, cylinders, and shock absorbers.
Hydraulic Cylinder Piston Rod is a high-quality hydraulic component manufactured by Wuxi Xinluo Hydraulic Machinery in China. We specialize in producing precision hydraulic cylinder piston rod for industrial hydraulic and pneumatic systems with strict quality control.
These piston rods are specifically designed for hydraulic cylinder assembly, manufactured to meet your required dimensions and performance specifications. Each rod goes through multiple quality inspection processes to ensure it meets the requirements for hydraulic cylinder operation.
Key Facts
-
Manufactured by Wuxi Xinluo Hydraulic with 20+ years of experience
-
ISO 9001 quality certified production
-
Custom sizes and specifications available
-
Precision grinding and honing processes
-
Strict dimensional tolerance control
-
Export quality standards
Frequently Asked Questions
What is hydraulic cylinder piston rod?
Hydraulic Cylinder Piston Rod is a precision hydraulic component used in industrial machinery and hydraulic systems. Wuxi Xinluo Hydraulic manufactures high quality hydraulic cylinder piston rod with strict quality control to meet industrial application requirements.
What is hydraulic cylinder piston rod used for?
Hydraulic Cylinder Piston Rod is used in hydraulic and pneumatic systems to provide mechanical movement, pressure containment or guidance in industrial machinery, automation, construction and manufacturing equipment.
Can you custom manufacture hydraulic cylinder piston rod?
Yes, Wuxi Xinluo Hydraulic offers custom manufacturing of Hydraulic Cylinder Piston Rod according to your specific dimensions, material and technical requirements.
