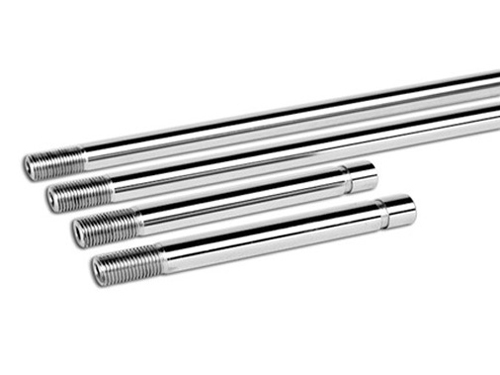

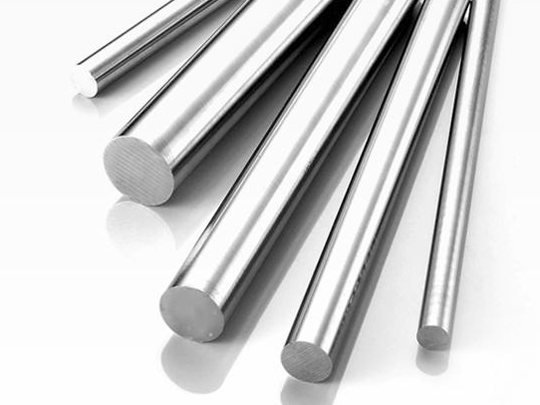

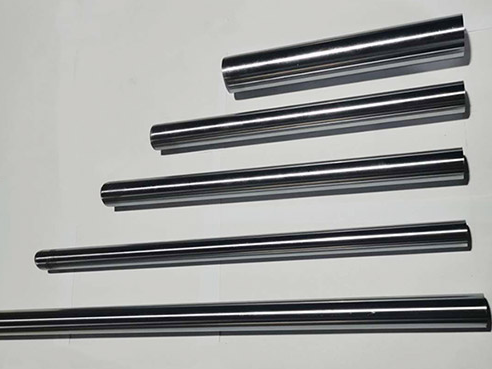

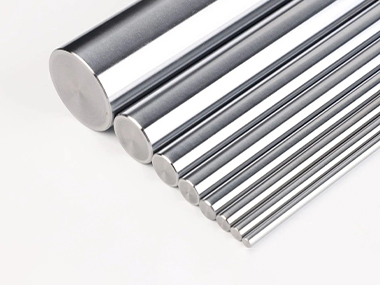

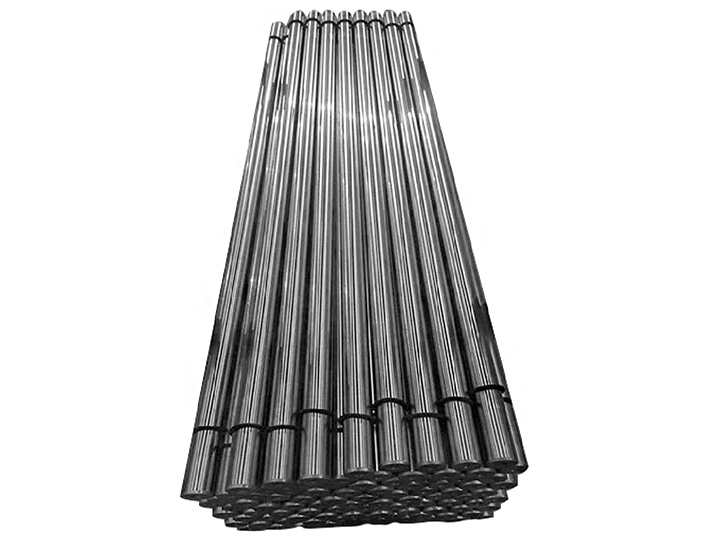

Introduction of CK45 Chrome Plated Rod

The surface is treated with specific grinding and hard chrome plating technology, and then polished with a mirror finish, with wear-resistant and corrosion-resistant properties. 45 # steel piston rod is suitable for various cylinders, oil cylinders, piston rods, packaging, woodworking, textile, printing and dyeing machinery, die-casting machines, injection molding machines, and other mechanical guides, top rods, etc.
Material: High quality 45 # steel
Outer diameter tolerance: f7-f8 (other tolerances can be customized)
Surface roughness: Ra0.2-0.4
Hard chromium thickness: 0.015-0.025mm
Surface hardness: HV700-1150
Straightness: 0.05-0.10m/m
Standard length: 1-6 meters
Alternatively, the surface can be customized with high wave treatment to a depth of 1-3mm
High wave hardness: HRC45 ℃~52 ℃
Note: Choose according to different purposes
Chrome plating thickness: air pressure=0.02mm
Oil pressure above 0.02mm
