Product introduction

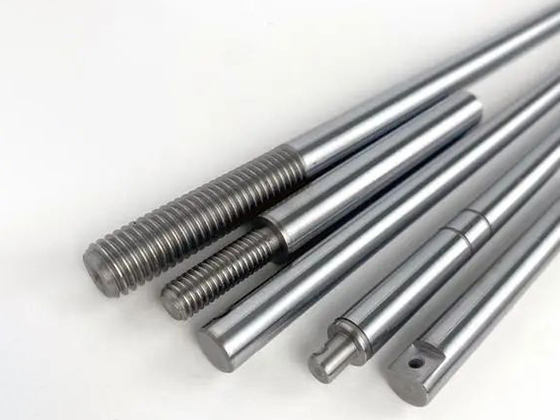

Chrome plated Smooth Shaft refers to a rod material formed by electroplating a layer of chromium element with a hardness of 50-60 on the surface of a silver steel support. The chrome plated rod has a guiding effect of sliding bearings, which can enable products that perform linear motion to be used in conjunction with linear bearings in the automation industry.
Specification of chrome plated Smooth Shaft
Generally speaking, the standard specifications for chrome plated optical axes are mainly Φ3, Φ4, Φ6, Φ8, Φ10, Φ12, Φ13, Φ14, Φ15, Φ16, Φ17, Φ18, Φ20, Φ22, Φ25, Φ28, Φ30, Φ32, Φ35, Φ38, Φ40, Φ45, Φ50, Φ55, Φ60, Φ63, ΦG5, Φ70, Φ75, Φ80, Φ85, Φ90, Φ100, Φ120 Waiting for high frequency, and the specifications of the quenched and tempered chrome plated rods produced can be selected.
Basic parameters of chrome plated Smooth Shaft
1. Outer diameter accuracy: g6, h7
2. Surface smoothness: ≤ Ra0.4S
3. True roundness: ≤ 0.01mm
4. Straightness: ≤ 0.15/1000mm
5. Hardened layer depth: 1-3mm
6. High frequency axis hardness: HRC60 ± 2°
7. Tempered hardness: HB220-280 (Tempered hardness can be customized according to customer requirements)
8. Hard chrome plating thickness: 0.015-0.05mm (can be customized according to customer requirements)
9. Standard outer diameter: Φ3~Φ120
10. Standard length: 1000-6000mm
Application of chrome plated optical axis
The surface of the chromium rod is treated with special grinding and hard chromium electroplating technology, and then polished with a mirror finish, with wear-resistant and corrosion-resistant properties. For example, it can be applied to various types of guide rods, operating rods, adjustment rods, transmission shafts, die-casting machines, injection molding machines, fitness equipment, electronic devices, power tools, light industry machinery, precision machinery, engineering machinery, packaging machinery, textile machinery, printing machinery, printing and dyeing machinery, mining machinery, woodworking machinery, automation equipment and other industrial machinery and supporting equipment.
Chrome Plated Smooth Shaft is a high-precision hydraulic component manufactured by Wuxi Xinluo Hydraulic Machinery in China. We specialize in producing chrome plated smooth shaft with strict quality control and precision processing for industrial hydraulic applications.
Chrome plated smooth shafts feature a hard chrome plating layer that provides excellent wear resistance and corrosion protection, making them ideal for hydraulic piston rods and guide shaft applications.
Key Facts
-
Manufactured by Wuxi Xinluo Hydraulic with 20+ years of experience
-
ISO 9001 quality certified production process
-
Custom sizes and specifications available
-
Precision grinding and honing processes
-
Strict dimensional tolerance control
-
Export quality standards
Frequently Asked Questions
What is chrome plated smooth shaft?
Chrome Plated Smooth Shaft is a precision hydraulic component used in industrial machinery and hydraulic systems. Wuxi Xinluo Hydraulic manufactures high quality chrome plated smooth shaft with strict quality control to meet industrial application requirements.
What is chrome plated smooth shaft used for?
Chrome Plated Smooth Shaft is used in hydraulic and pneumatic systems to provide mechanical movement, pressure containment or guidance in industrial machinery, automation, and manufacturing equipment.
Can you custom manufacture chrome plated smooth shaft?
Yes, Wuxi Xinluo Hydraulic offers custom manufacturing of Chrome Plated Smooth Shaft according to your specific dimensions, materials and technical requirements.
